A DIY $8 Lithium Transmitter Battery (Part 3)

TESTING THE BATTERY

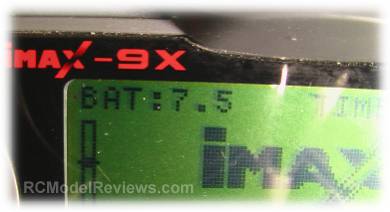

If you connect up your new battery pack and turn on the transmitter you should see something like this:

The transmitter should work as normal and the voltage display should read somewhere between 7.2 and 7.8 volts.

However, you will find that it beeps at regular intervals. That beeping is the low-voltage warning that is programmed to kick-in at 8.8V.

When an 8-cell AA pack reaches 8.8 volts it is very nearly dead flat. In such a situation, the low-voltage alarm would sound and warn you that it's time to land as quickly as you can to avoid losing control of the model.

But -- our 2-cell lithium battery only puts out about 7.4V most of the time so if we don't make another small change then it will beep all the damned time, even though it will continue to work just fine until the voltage drops down to about 6.5V.

So what can we do to stop that incessant beeping?

Well we could cut the wire to the tiny speaker -- but then we'd loose the timer beep and the other little noises that the transmitter is supposed to make.

The 8.8V warning level is built into the transmitter's software and can't easily be altered, so that leaves only one option... we have to fool the transmitter into thinking that it has more voltage than it really does.

Fortunately, this is a pretty simple thing to do and requires the addition of only a single 10-cent resistor to the circuit board.

Foiling The Transmitter's Low-voltage Alarm

In order to get at the circuit-board we must remove the back of the transmitter.

Before you remove any screws -- unplug your new battery! Also don't forget to remove the RF module if you have one installed.

Then undo the six phillips-head screws that hold the two halves of the transmitter together.

You can then lift the back off and position it out of the way like this.

Here is the main logic board from inside the 9X transmitter. You can ignore the grayed out bit, we're only interested in the bit that's colored in the above picture.

The board in the picture above has been removed from a transmitter but you can do this modification to your radio without removing the board or unplugging anything.

Here's a closer view. You'll notice I've circled a single component and labeled it as a 5.1Kohm resistor. In order to fool the transmitter into thinking it still has an 8-cell battery, we have to solder another resistor across this one.

If you've never worked with small electronic components and circuit-boards before you're probably screaming "no way, that's all way-too small for me!".

Well fortunately it's not as bad as you might think. We don't have to solder directly across the tiny resistor, we can solder to the copper tracks that it connects to.

To do this, we must first scrape off the solder-mask (that green paint) which covers the copper.

An important word of warning here: some of the components in your transmitter are sensitive to static electricity. If you have one, use an wrist-strap to earth yourself and use a conductive mat on which to work. If you don't have either of these things, Make sure you're not working on a carpeted floor and also avoid sitting on anything other than a plain wooden or metal stool. The friction of cotton clothing against plastic or nylon carpet/upholstery can generate very high voltages if you're not careful.

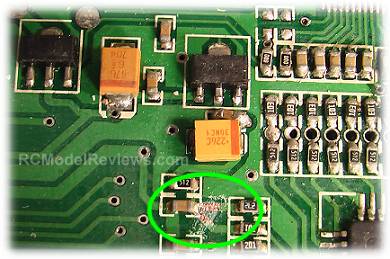

There are two places where you have to scratch away the green to expose the copper beneath. Use a sharp modelling knife but take care. In the picture above I've scraped the green off one position but it's not yet coated with solder.

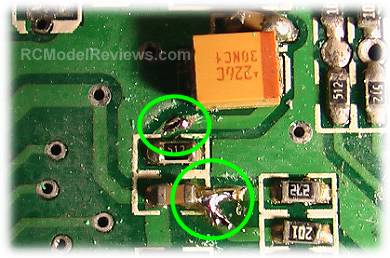

In the above picture you can see that I've scraped and soldered the copper in both the places (circled) that we will be attaching our resistor.

You will almost certainly need to use a magnifier to identify these positions on your board and you will also need a soldering iron with a *very* fine point, plus some very thin rosin-cored solder. Don't use a big fat soldering iron and thick solder or you'll have problems.

If this bit looks too hard, you might want to find someone with decent eyesight and soldering skills to do it for you.

You need to tin the freshly scraped copper so that the resistor can be soldered in place so do this as quickly as possible and check afterwards that you haven't left any whiskers of solder that might short against neighboring components.

Use fresh solder and be quick -- those are the secrets here.

If your soldering iron is still hot then we can move on to the trickiest bit, installing the resistor.
