Review: Turnigy 9X Version 2 (Part 3)

A CLOSER LOOK

Old receiver versus new receiver

Dated: 22 June 2010

The Receiver

The old (version 1) FlySky receiver on the left (above) was rebranded "Hobby King" and came with a small satellite to provide diversity -- that was quite amazing for such a low-priced system.

The new 8-channel receiver (on the right, above) is cheaper than the old one, a cost-reduction probably made possible by the fact that there's no longer a satellite.

The big question on my mind was "how can they mitigate the effects of multi-pathing and shadowing without a satellite?" When I tried to use the version 1 receiver without a satellite it worked but gave nasty lockouts at comparatively close range I sure hope the version 2 is better.

FlySky have taken a two-fold approach to this. Firstly they've changed from using a simple quarter-wave wire antenna to using a sleeved dipole (something Hitec euphemistically call a BODA). This antenna provides a little more sensitivity than the old wire antenna so should help somewhat.

However, the biggest mitigation for the rather peculiar things that happen at 2.4GHz is the switch to a frequency-hopping system rather than the single-frequency DSSS method used before.

The use of a sleeved dipole and frequency hopping has worked surprisingly well for Hitec with its Optima 6 and Optima 7 receivers, both proving more than capable of delivering almost bullet-proof performance even in very large models. Perhaps the new Turnigy/FlySky system will do the same -- I won't know until I've done the flight tests. Unfortunately, because it's winter here and I may not get to flight test the system for weeks (depending on how the weather works out), I've opted to publish this review without the flight tests and then update it later.

inside the 9X receiver

The physical design and construction of the 8-channel receiver is now vastly improved over the earlier version. Gone are the awkwardly placed capacitors that look like after-thoughts and all the electronics are now nicely contained on a single spacious circuit board. The electrical design is changed only slightly and the same Taiwanese 2.4GHz transceiver chip is used as before. Although this isn't the most sensitive chip on the market and it has no pre-amplifier to boost its capabilities, it should (at least in theory) do the job.

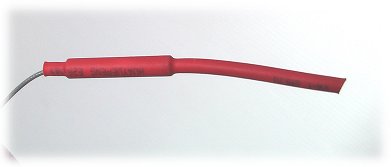

Turnigy 9X receiver antenna

I was a little concerned to see that the receiver's circuit board was hot-glued into the plastic case and that after removing the hot-glue so I could get a better look, it tended to move around when servos and battery leads were plugged in and out. I also noticed the use of a largish crystal rather than a tiny surface-mount (SMT) version. Crystals this size tend to be far more fragile than their SMT equivalents. This receiver could be a little more fragile than most 2.4GHz units if you have a crash or high vibration levels. But remember (yes that's right), it's only a $60 radio!

The bind LED is hidden away inside the radio such that it is obscured by the label on the top surface. To see if the LED is illuminated you must look through the side of the smoked plastic case.

Binding itself is a painless operation and simply involves inserting the bind-plug into the marked servo-slot, holding down the bind button on the transmitter while turning it on and then powering up the receiver. Although the transmitter bind-button is also labeled "range test" I have not had time to verify that this function is supported -- it certainly wasn't on the old system.

Unfortunately, the receiver has no failsafe so, regardless of whether it has good range and even if the loss of the satellite doesn't compromise its ability to cope with shadowing and multi-pathing, this is a system for *small* models only. You would not put this receiver into a large glow or gas-powered model, nor would you use it in a jet. But who am I kidding -- a $9 receiver in a jet??

And, just in case you're wondering, the version 2. receivers do not bind to the version 1 transmitter modules. Sorry, but if you want more receivers for your old HK/iMax/FlySky/Eurgle 9X radio then you'd better snap them up while they're still available -- there's no backwards compatibility here I'm afraid.
